HighTech Labs

The Jacob & Co. Epic SF24 Tourbillon Craftsmanship Not For sale

Regular price $695,000.00 USD
Regular price Sale price $695,000.00 USD
Sale Sold out

The Jacob & Co. Epic SF24 Tourbillon

Craftsmanship

This watch is Not for sale

this post is created Just for your enjoyment

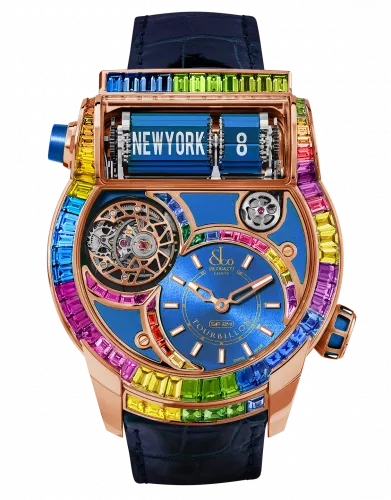

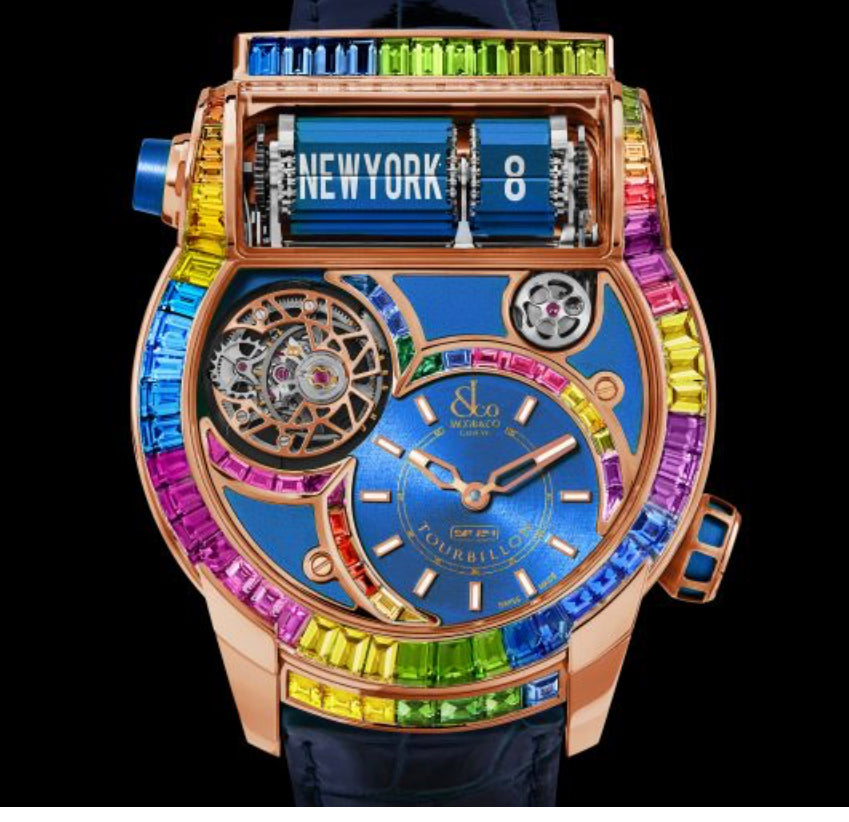

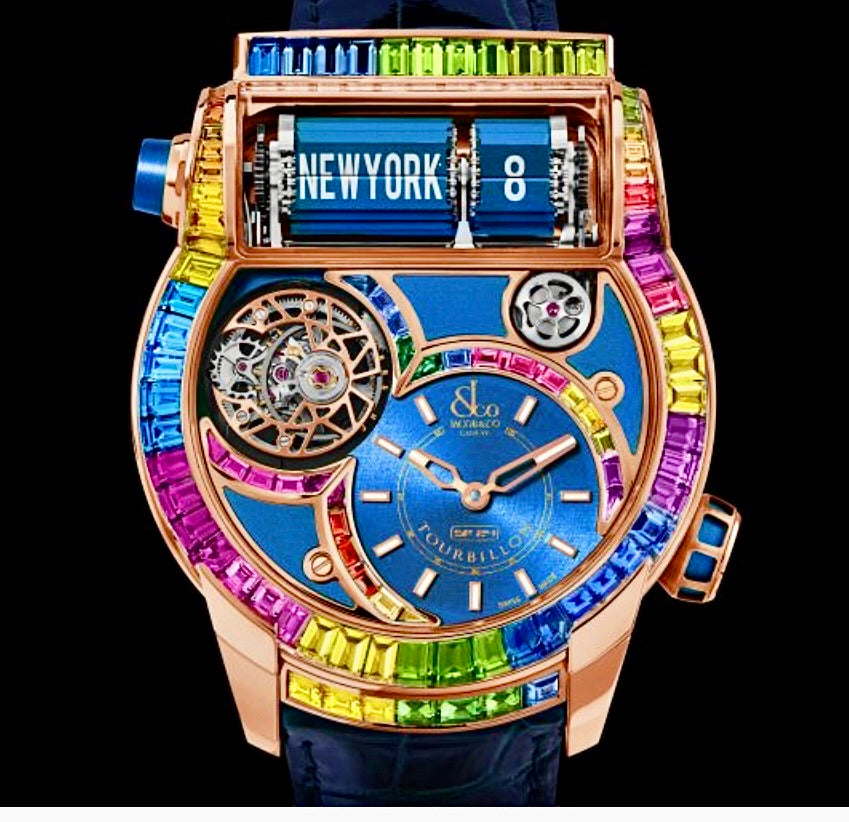

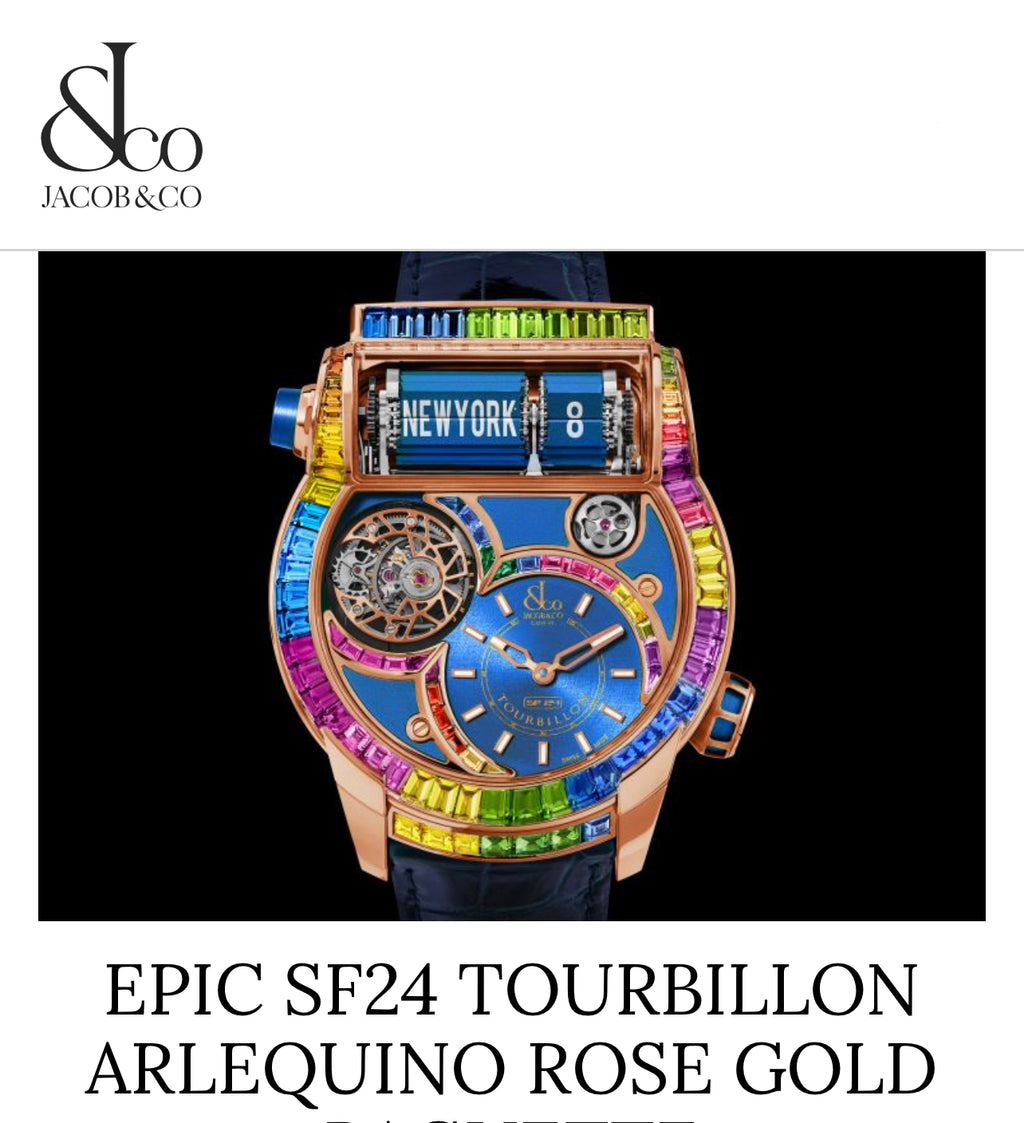

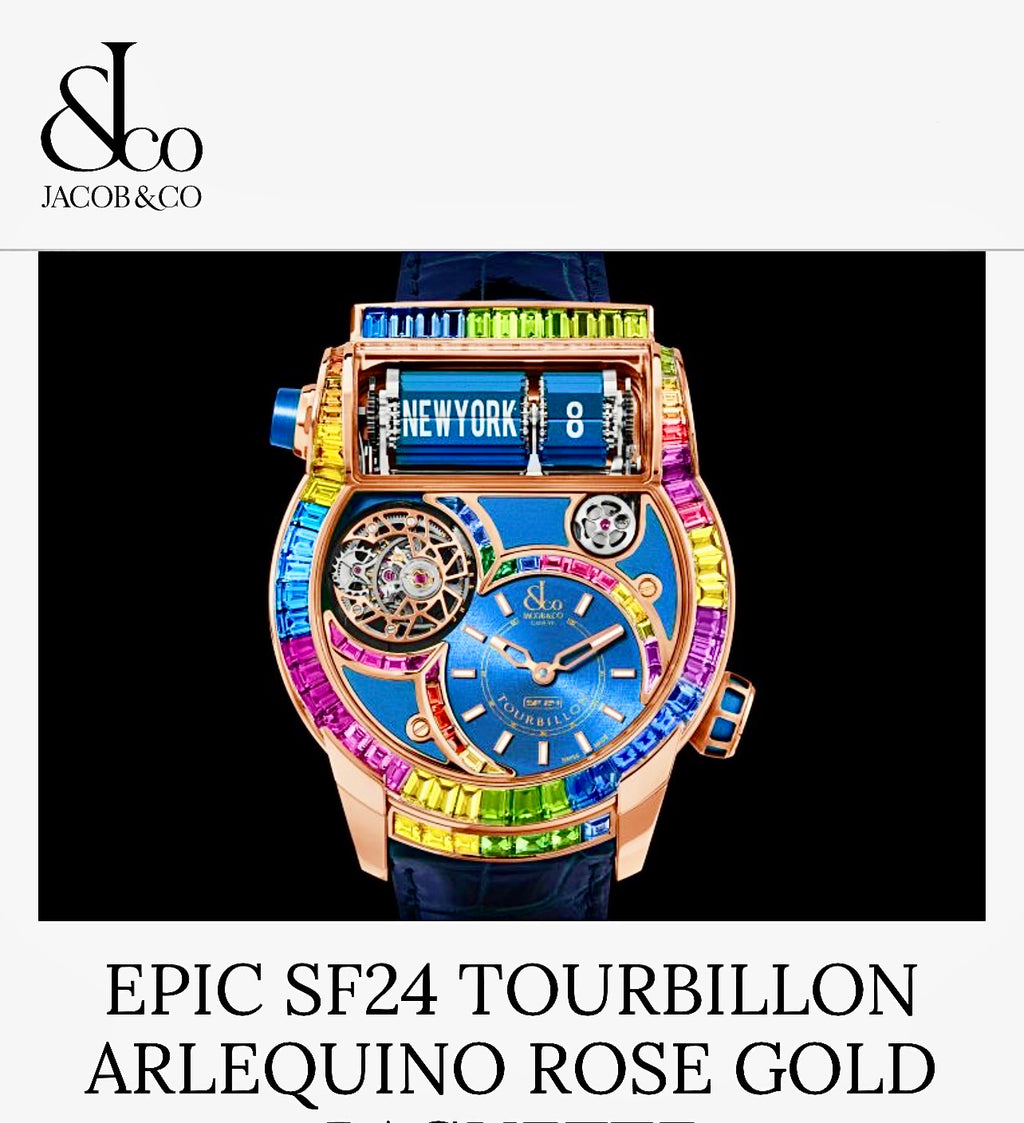

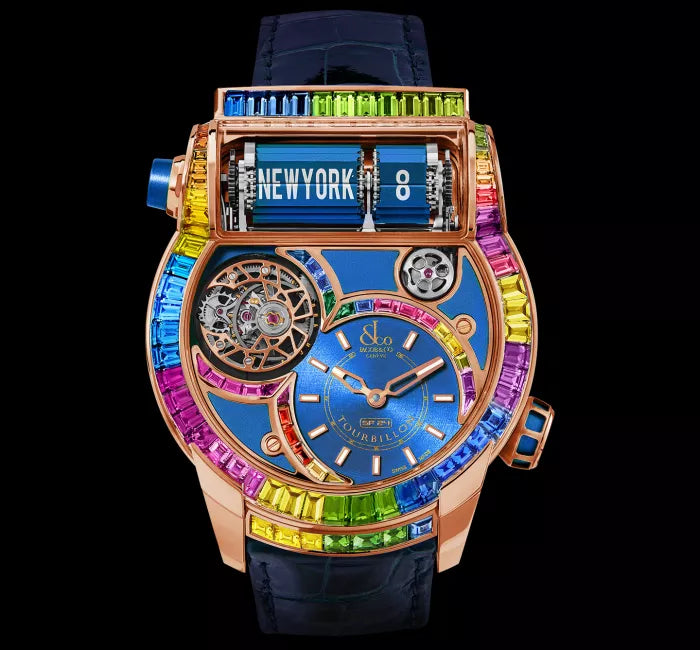

EPIC SF24 TOURBILLON ARLEQUINO ROSE GOLD BAGUETTE

a watch with a blue and gold band

STORY



With its groundbreaking city-time display, the Epic SF24 Tourbillon Arlequino Baguette Rose Gold enters a bold new dimension entirely undiscovered by traditional watches. Named after its Split-Flap, 24-city, vertical second time zone display, the Epic SF24 Tourbillon is a jet-set world-traveler's watch that is unique in its complexity and utility. Remarkably challenging to engineer and manufacture, yet easy and intuitive to use: the functionality and design of the Epic SF24 render it prepared to take on the world.

a close-up of a computer chip

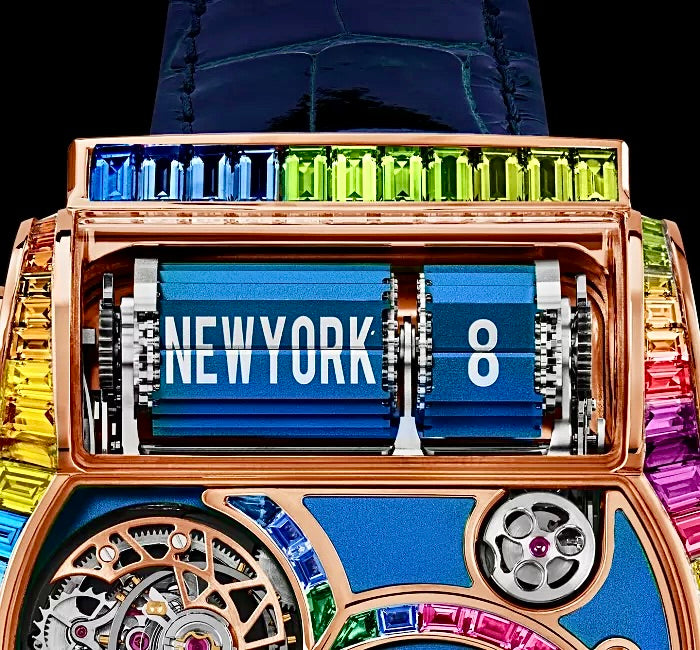

SPLIT-FLAP WORLD TIME DISPLAY

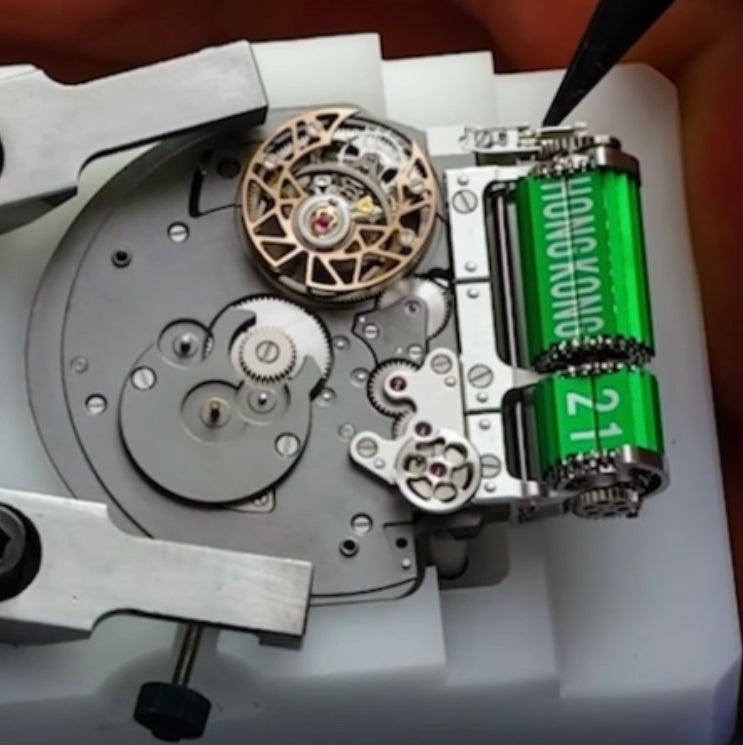

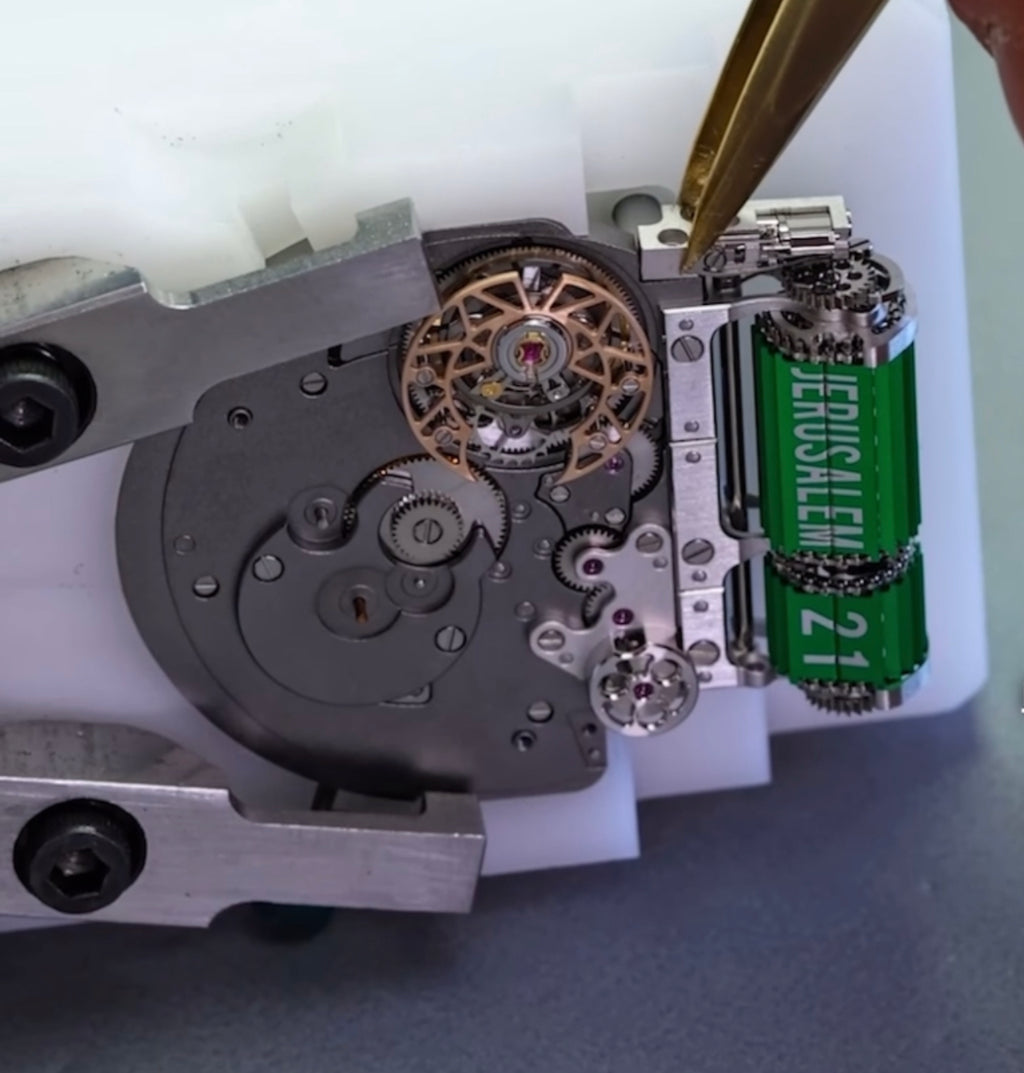

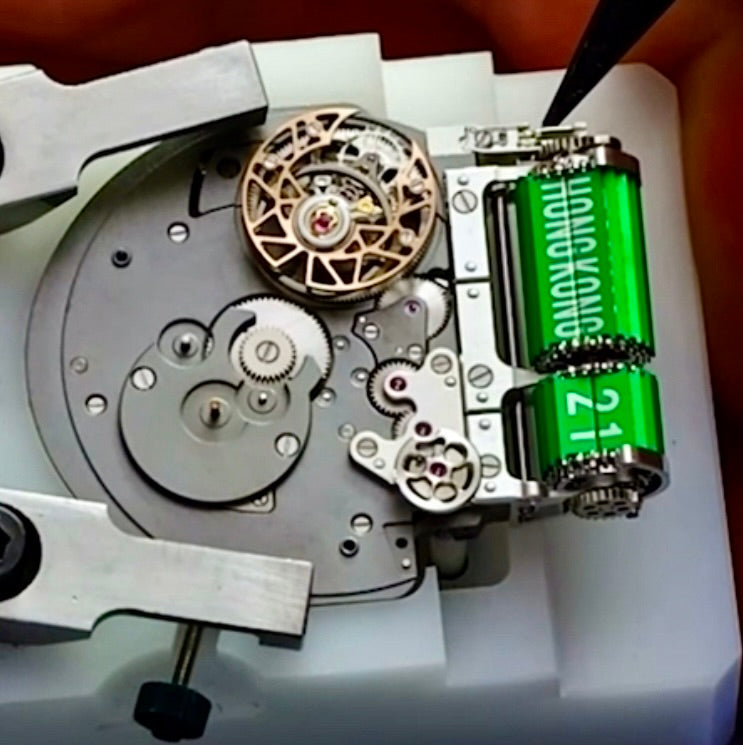

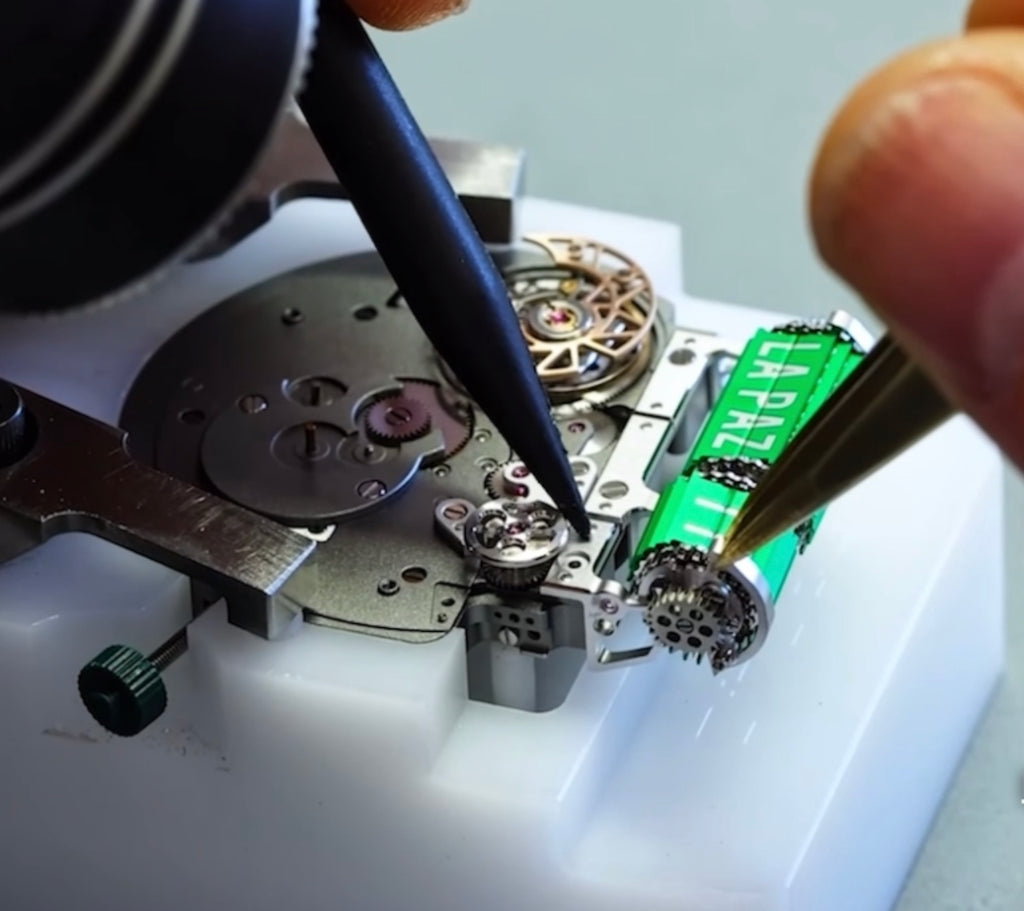

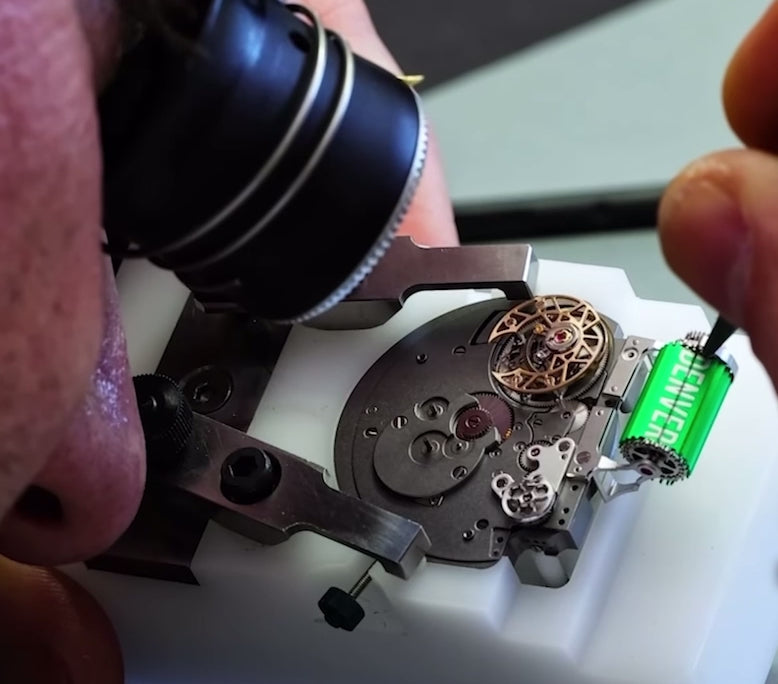

The patented World Time Display of the Epic SF24 Tourbillon Arlequino Baguette Rose Gold comprises a total of 163 components, allowing it to work at a press of a button, on demand, with exceptional feel and reliability. Inspired by traditional split-flap timetable displays seen on airports and in evergreen cinema classics, every press of the button integrated into the left hand side of the Split-Flap extension turns it to the next city name - and, along with it, also advances the Arabic hour display by one.

Designed to boldly stand out among traditional 2nd time zone indications so omnipresent in modern watchmaking, the Split-Flap display is a spectacular engineering achievement unto its own not simply for its complexity, but for its singular ability to bring a smile of appreciation to even the most tired of world travelers.

a close up of a car tire

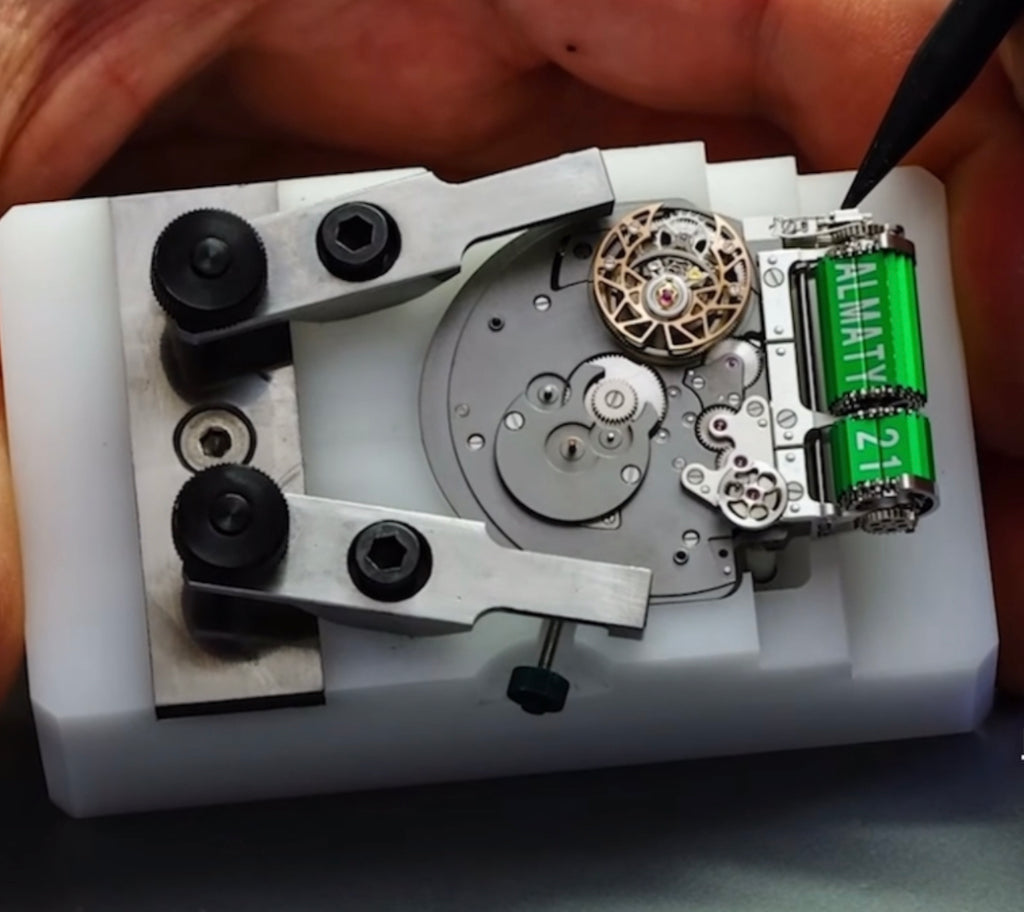

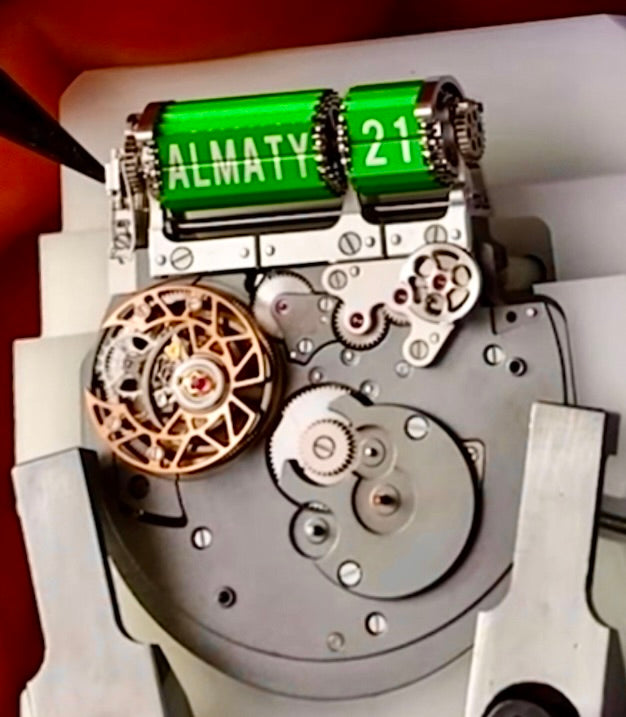

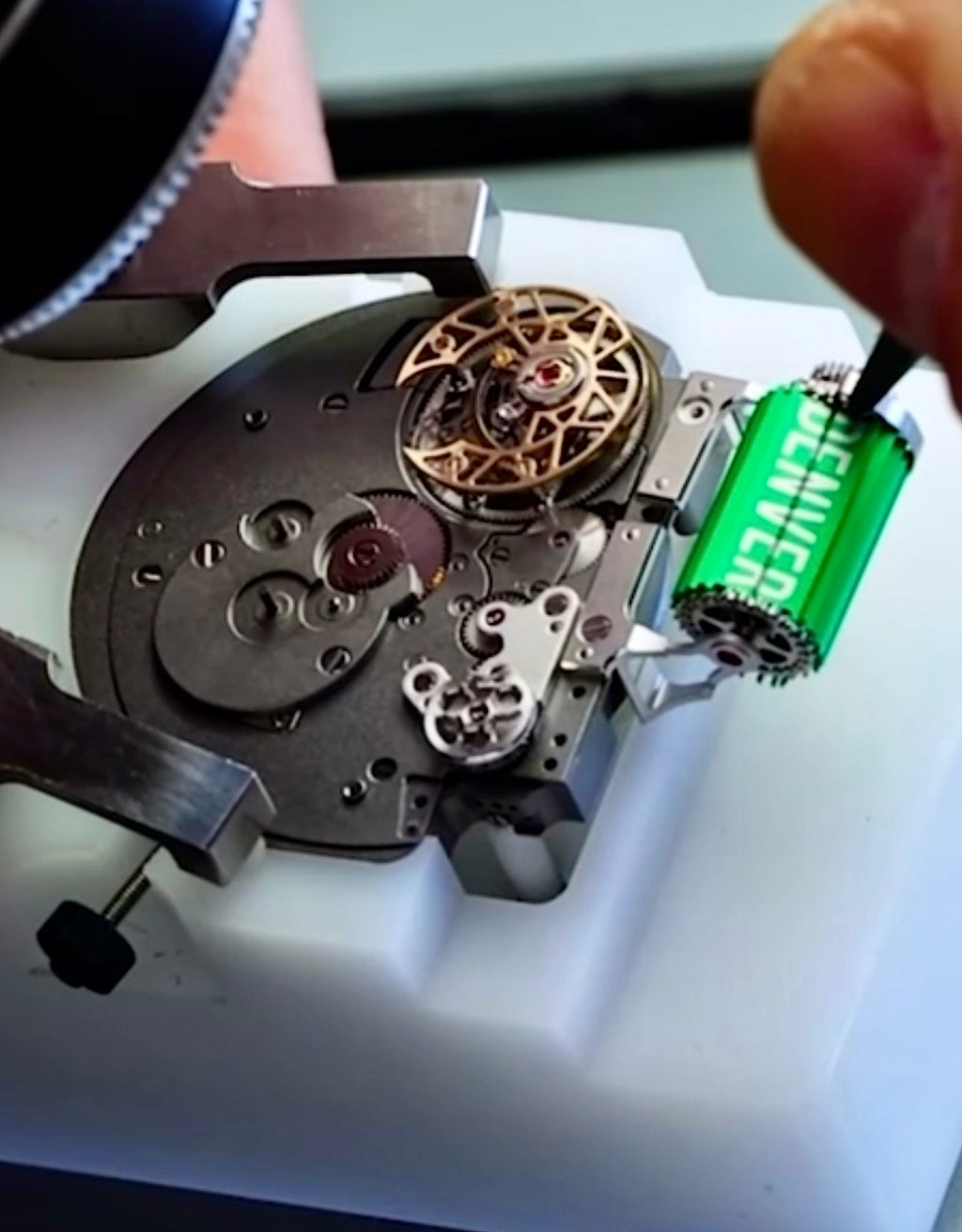

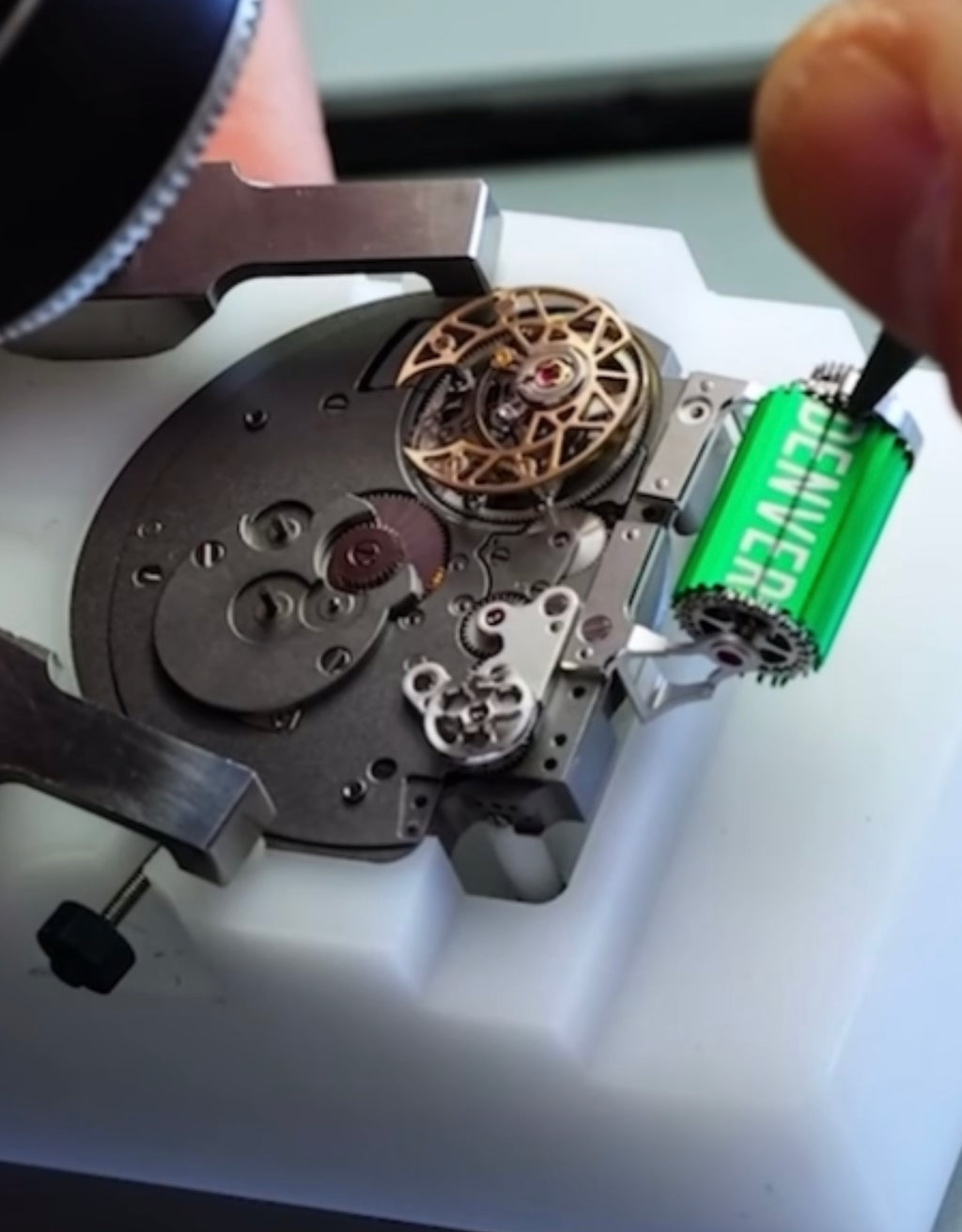

EPIC SF24 TOURBILLON CALIBER

The Exclusive JCAA03 Caliber powers the Epic SF24 Tourbillon Arlequino Baguette Rose Gold and all its time indications. The time on the main dial is set via the crown located at the 4 o'clock position of the case. Once the hours and minutes have been set, the World Time Display is to be adjusted via the pusher dedicated to this purpose.

With this done, the main dial and the second time zone display work together through a fully mechanical connection: as the main dial advances to the following hour, so does the split-flap hour display, making for a highly engineered audible and visible feat - not just when it is adjusted, but also once every hour, throughout its operation.



Comprising 528 components, including 163 for the Split-Flap display, the JCAA03 caliber's 48-hour power reserve is replenished by a self-winding rotor mechanism. Finished with high-end Cotes de Geneve, circular perlage graining and anglage decoration techniques, it tastefully combines the values of traditional horology with the achievements only possible in cutting-edge, ultra-modern watchmaking.

a close up of a car tire

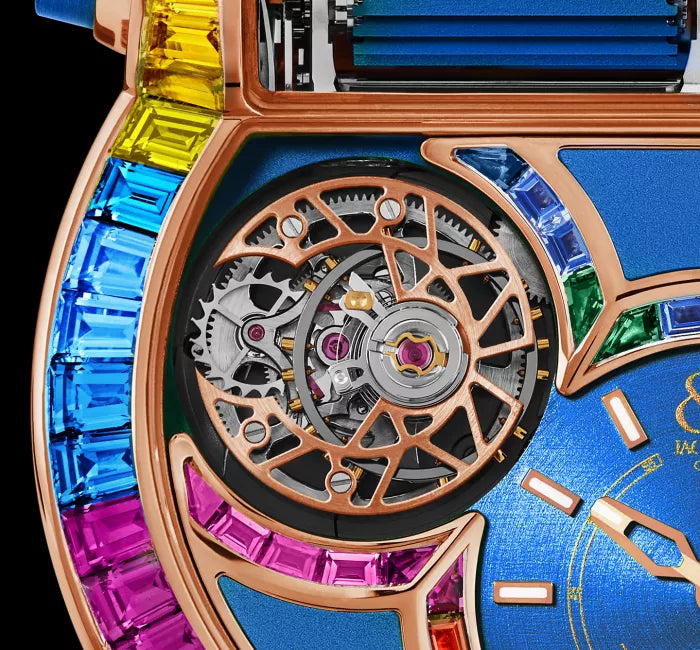

FLYING TOURBILLON

Whereas the tourbillon was originally invented to be a single-axis, rotating cage secured from above as well as below to carry the regulating organ of a mechanical pocket watch for improved timekeeping performance, the Epic SF24 Tourbillon Arlequino Baguette Rose Gold presents this 224-year-old invention in a yet more spectacular way.



The one-minute flying tourbillon of the Epic SF24 Tourbillon Arlequino Baguette Rose Gold features a delicately decorated cage that encapsulates the balance wheel, hairspring, escape wheel and a number of other crucially important components. This openworked cage not only features an elaborate web-pattern in its architecture, but is only secured from underneath, allowing for an unobstructed and full view at the ultimate refinement of its detailing and operation. It is a constellation of superbly finished components that, when assembled and fine-tuned expertly, allows the JCAA03 to keep accurate time throughout its 48-hour power reserve.

a watch with a blue face

CASE & CRYSTAL

The case of Epic SF24 Tourbillon Arlequino Baguette Rose Gold measures 45 millimeters in diameter and 13.65 millimeters thick at its center, and 16.70 millimeters between the top of its World Time Display and the lowest point of its case. Its case is crafted from 18K Rose gold, set with 79 baguette-cut multi-color sapphires. The case sides, pusher and crown are inset with honeycomb pattern rubber. An anti-reflective sapphire crystal covers the main dial, and a specially curved sapphire crystal safeguards the Split-Flap display, allowing for unhindered viewing of its operation and the spectacular mechanisms inside. The case-back also features a sapphire crystal pane, with a Jacob & Co metallized decor, proudly stating the name of the Epic SF24 Tourbillon's creator.

a close up of a watch

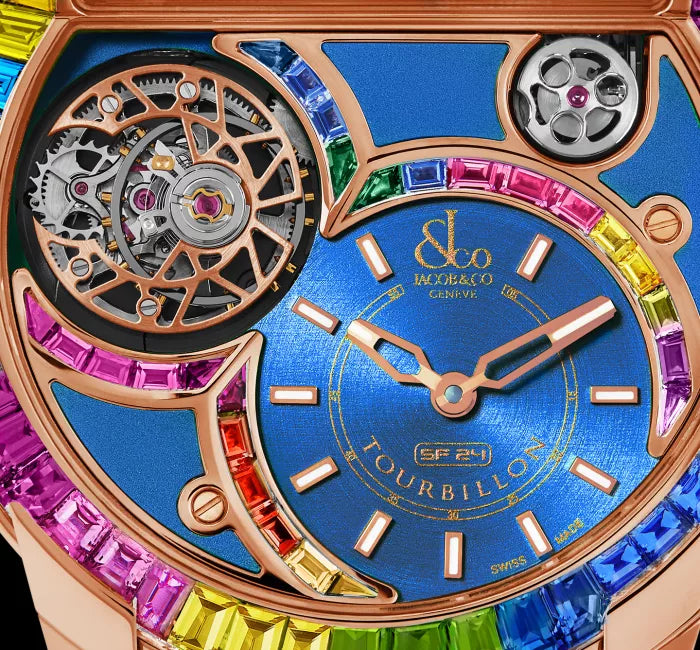

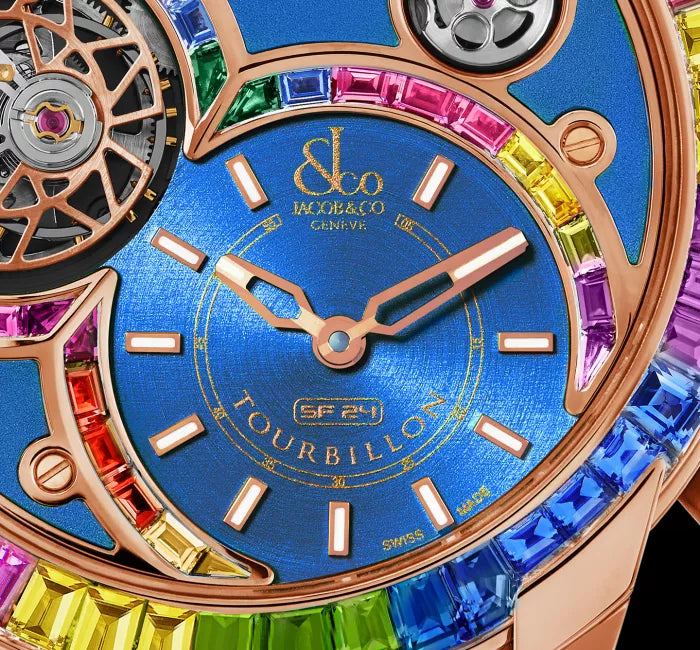

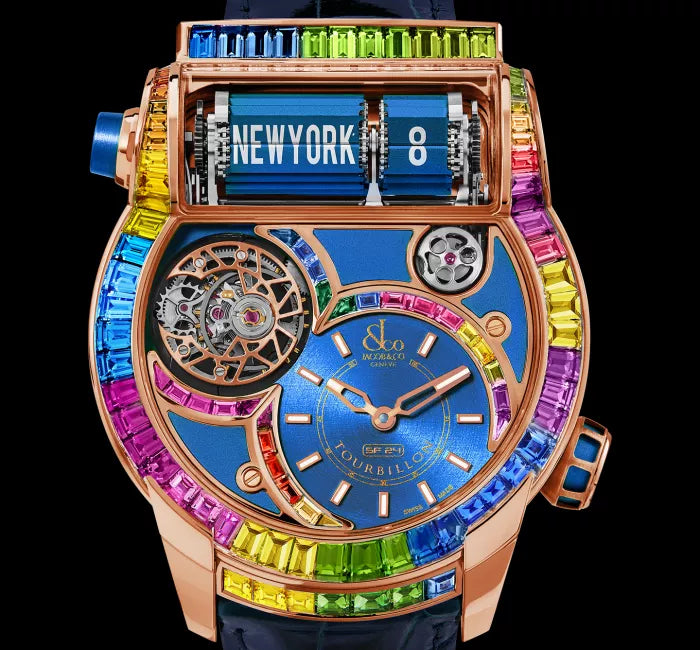

DIAL & HANDS



The Epic SF24 Tourbillon Arlequino Baguette Rose Gold is fitted with a Blue PVD dial. Above it extends the Split-Flap display for the World Time's city name and its respective hour indication, in high contrast blue PVD and white. The skeletonized central hands and the hour indices have luminescent coating for increased legibility under all circumstances.

a watch with a blue band

TECHNICAL SPECIFICATIONS

Item Number: ES802.40.AB.AA.ABALA



MOVEMENT:

Caliber: Manufacture Self-winding Jacob & Co. JCAA03 Caliber; Patented;

One-Minute Flying Tourbillon;

Dimensions: 35.50mm x 42.10mm x 12.20mm;

Components: 528 (68 in the cage, 163 for the 24-Hour World Time Indication System);

Power Reserve: 42 Hours;

Frequency: 28'800vib/h (4Hz);

Jewels: 36;

Finishing: High-end Finishings; Sand-Blasted.



FUNCTIONS:

Hours, Minutes, Instantaneous Digital & Vertical 24-Hour Second Time Zone Indication.



CASE:

Diameter: 45mm;

Height: 13.65mm at the Center, 16.70mm at the World Time Display;

Material: 18K Rose Gold set with 79 Baguette Multicolored Sapphires (≈ 10.25ct.);

Case sides, Pusher and Crown: Inserts of Honeycomb Pattern Rubber;

Finishing: Horizontal-grained, Micro-Blasted and Polished;

Crystal: 1 Domed & 1 Flat Sapphire Crystal with Anti-Reflective Treatment on Both Sides;

Case Back: Sapphire Crystal and Metallized Jacob & Co. Decor;

Water resistance: 30m (3atm).



DIAL & HANDS:

Dial: Blue PVD, set with 25 Baguette Multicolored Sapphires (≈ 1.03ct.);

Hands: Rose Gold-plated Skeleton hands;

White Superluminova Coating.



STRAP & CLASP:

Strap: Blue Alligator;

Clasp: 18K Rose Gold Deployant Buckle.



LIMITED EDITION:



4 PIECES
